PLOTO HB Chrome Base Chair

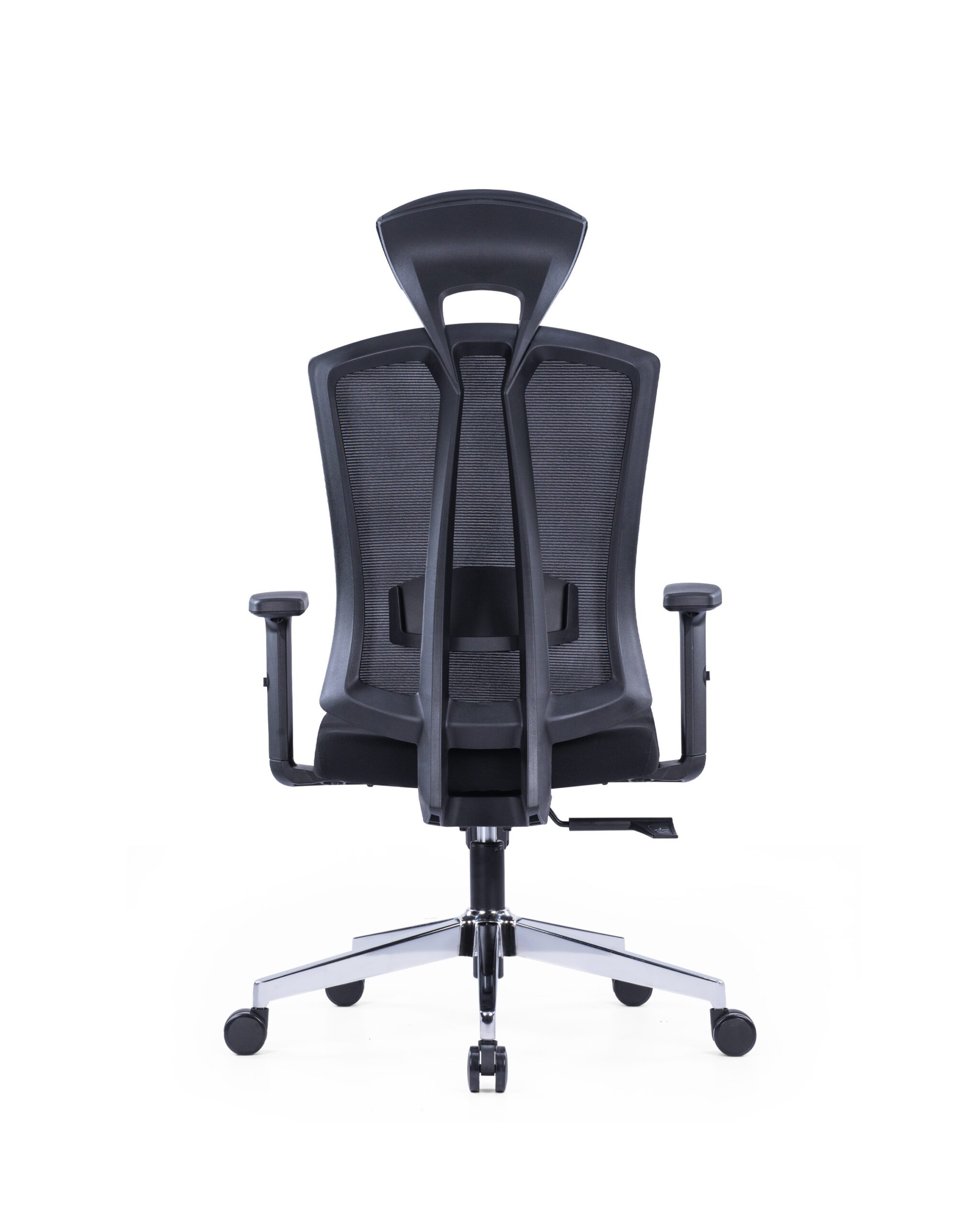

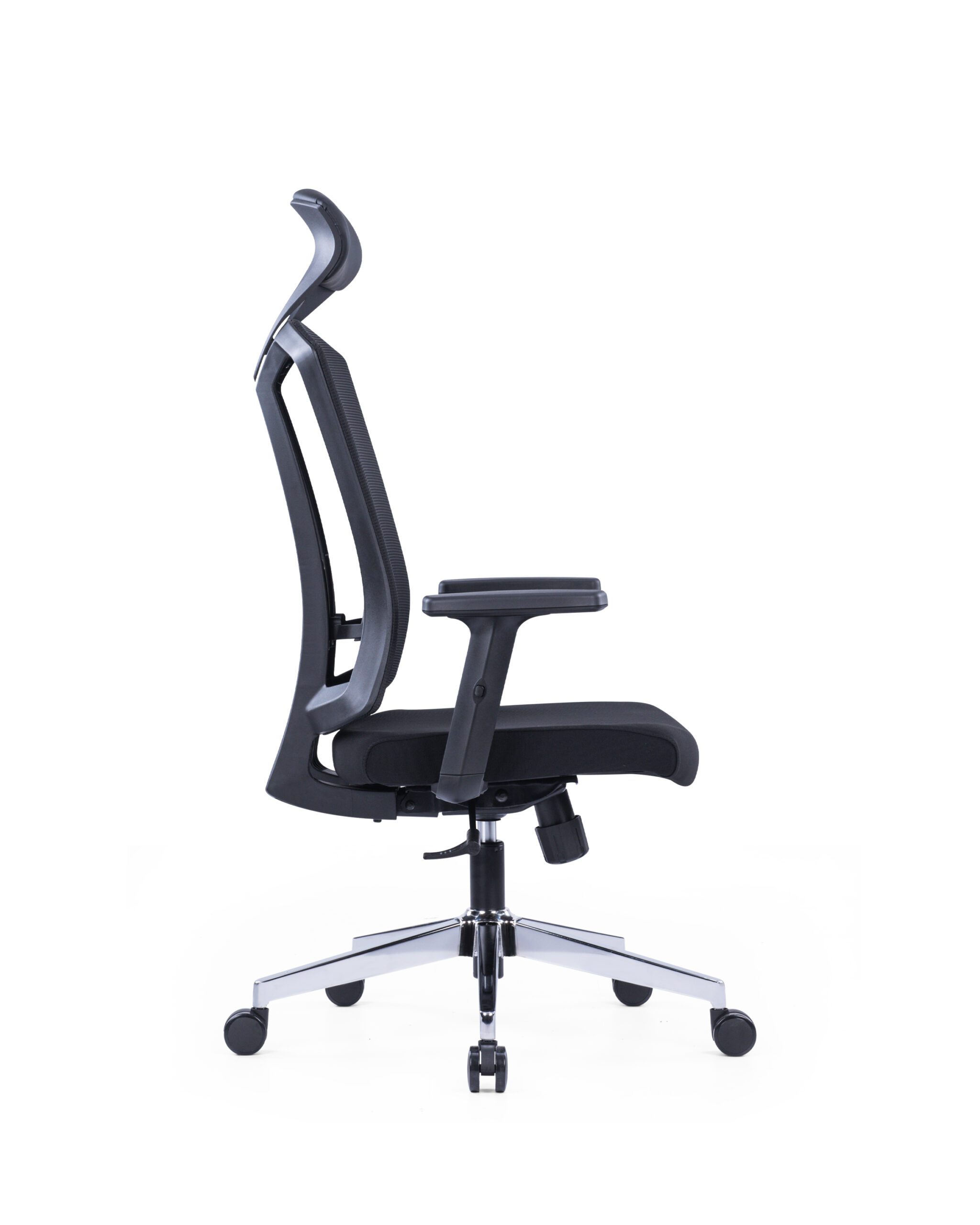

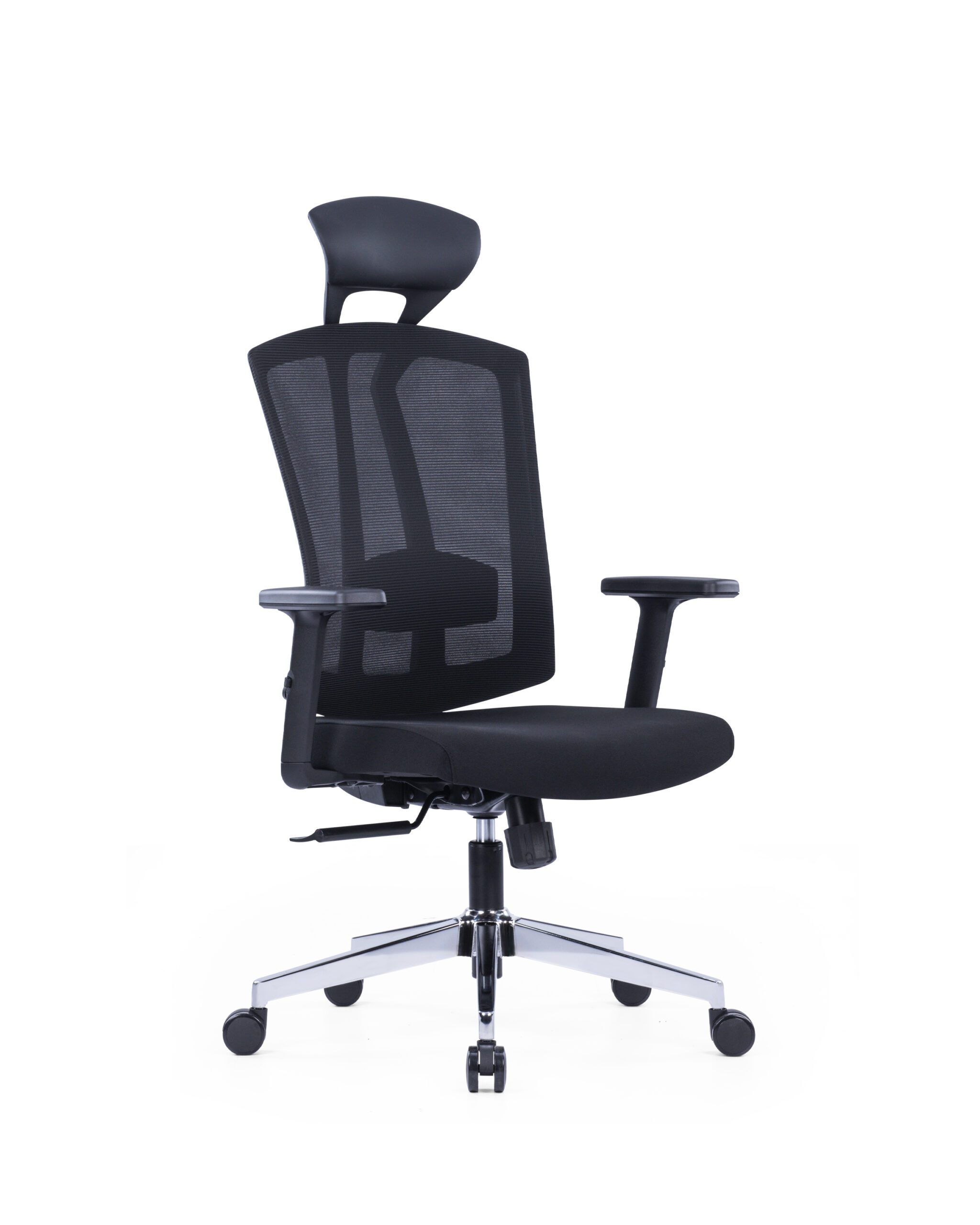

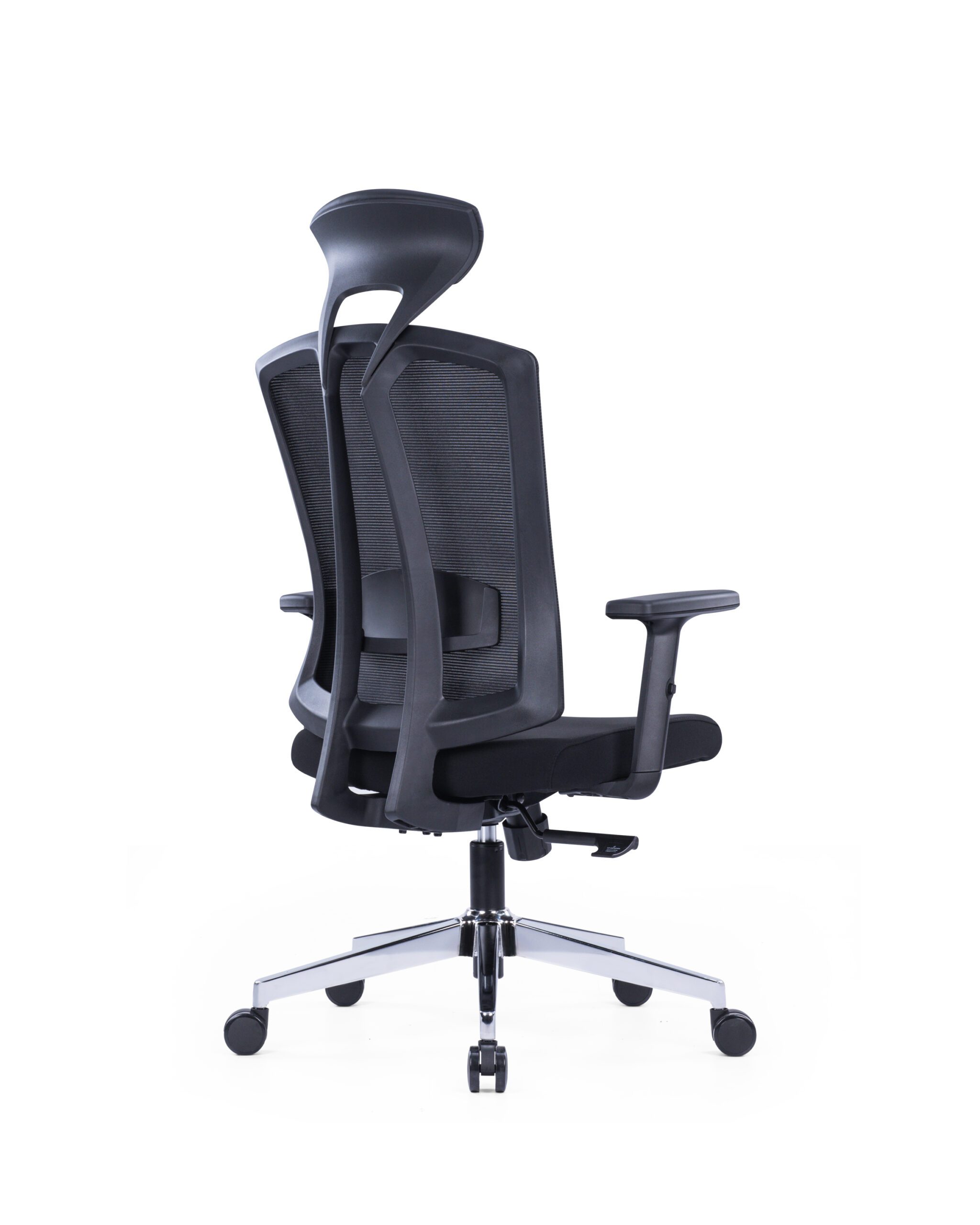

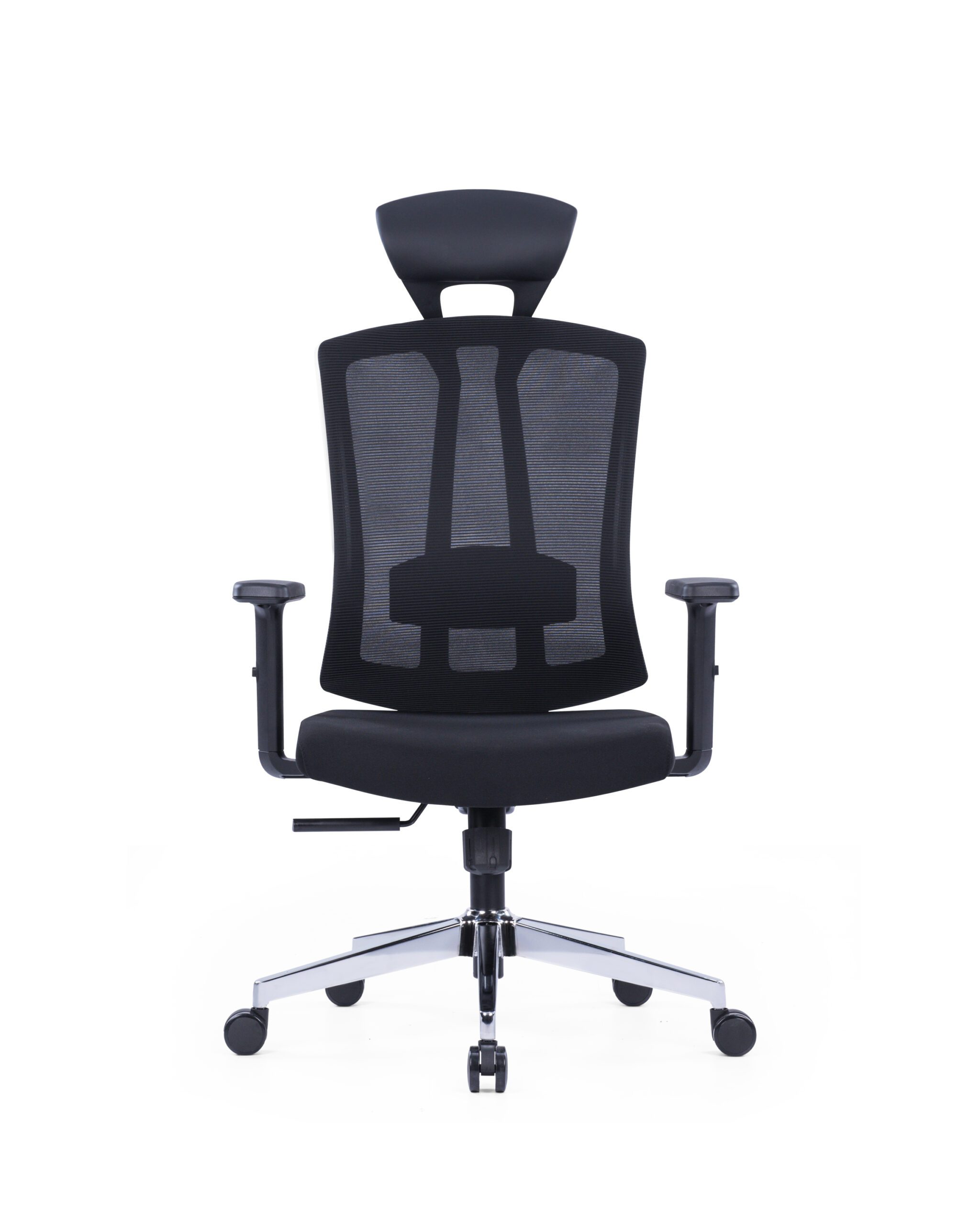

The PLOTO High-Back Chrome Base Staff Chair is a modern ergonomic office chair designed for daily workstation use. It combines breathable mesh support, a sleek profile, and reliable adjustability, making it suitable for staff offices, open workspaces, home offices, and managerial environments.

The chair features a high-back mesh backrest with a fixed headrest, providing upper-back and neck support while allowing airflow throughout the day. Its black nylon frame reinforced with glass fibre gives the chair a durable structure with a clean, professional appearance.

For added comfort, the chair includes an adjustable lumbar support that helps support the lower back. The moulded foam seat cushion offers stable, long-lasting seating comfort, while the PU-topped armrests can be adjusted up and down for better arm positioning.

A simple position-lock mechanism allows the user to work comfortably in an upright posture while still benefiting from reclining support when needed. The chair is fitted with a No. 100 black gas lift for height adjustment and is supported by a polished chrome five-star base with castors, giving it a refined executive look while maintaining mobility

Technical Specifications

• Product name: PLOTO
• Model: CH-267A-LP
• Chair type: High-back mesh staff chair
• Backrest: Breathable mesh back
• Headrest: Fixed headrest
• Frame: Black nylon frame with glass fibre
• Lumbar support: Adjustable
• Seat cushion: Moulded foam cushion
• Armrests: Height-adjustable armrests
• Arm pads: PU top armrests
• Mechanism: Simple position lock mechanism
• Gas lift: No. 100 black gas lift
• Base: Chrome five-star base
• Castors: Black castors

Dimensions

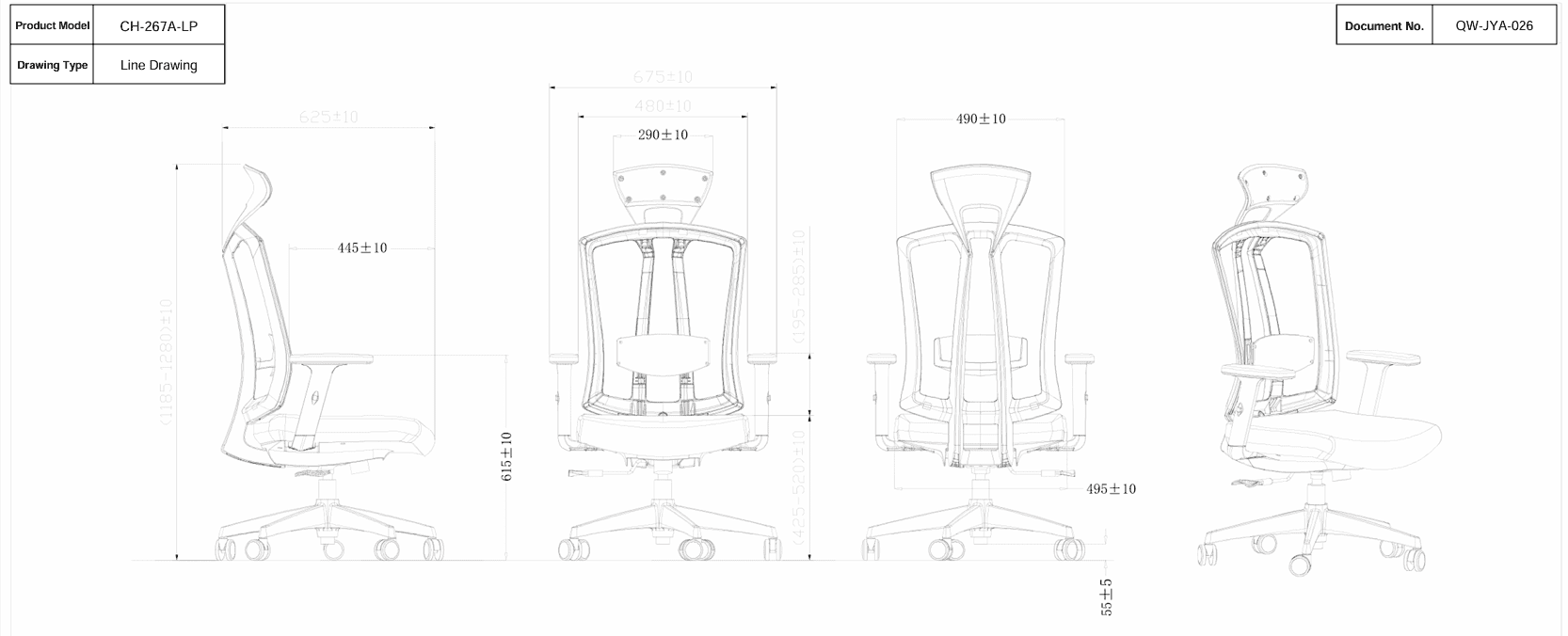

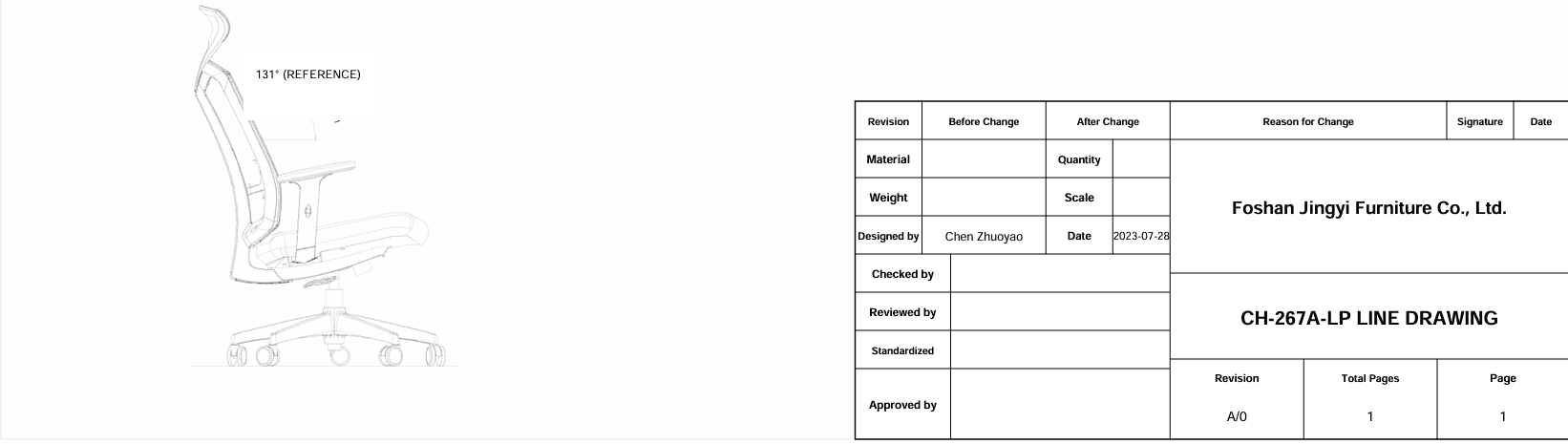

Based on the attached line drawing:

• Overall width: 675 ± 10 mm
• Overall depth: 625 ± 10 mm
• Overall height: 1185–1280 ± 10 mm
• Seat width: 480 ± 10 mm
• Seat depth: 445 ± 10 mm
• Seat height: 425–520 ± 10 mm
• Back width: 490 ± 10 mm
• Headrest width: 290 ± 10 mm
• Arm height: 615 ± 10 mm
• Castor size: 55 ± 5 mm
